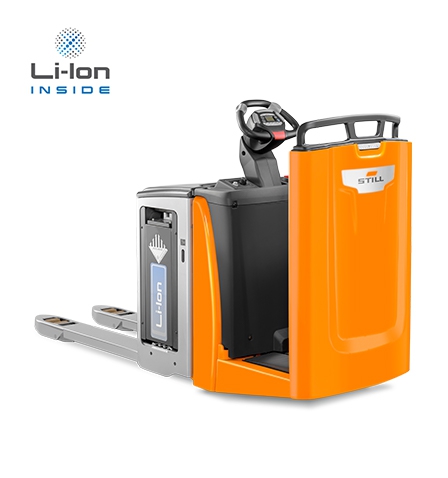

EXH-S 20-25

Highlights

• Ergonomic back protection thanks to individually adjustable aircushioned driver’s stand-on platform
• High and flexible handling capacity: a maximum speed of 14 km/h and a lifting capacity of 2,500 kg
• Safe handling in confined spaces thanks to a chassis that is only 720 mm narrow
• Intuitive operating concept: height-adjustable STILL Easy Drive steering wheel provides easy-access control without having to change to grip

EXH-S 20-25

Efficient performance, safe and convenient operation, reliable flexibility – the EXH-S pallet truck combines all of these features to perfection. With a maximum lifting capacity of 2,500 kg, a swift top speed of 14 km/h and the ability to move two pallets at once thanks to the extra-long forks, the EXH-S features unrivalled performance. Thanks to the intuitive operating concept, you can rely on the height-adjustable STILL Easy Drive steering wheel with integrated display and rocker switches at all times. This feature ensures that left- and right-handed operators always have full control of all functions, without having to change grip. The optional, individually adjustable, air-cushioned stand-on platform also provides optimal protection for the operator’s back, even in the toughest applications. Speaking of applications, the EXH-S equips you for any storage situation and ensures you benefit from flexibility when it comes to configuration variants. All truck variants have an ultra-robust chassis. This provides extra protection for demanding ramp applications, for example. Those who choose the lithium-ion variant as an option can interim charge the battery at any time and benefit from maximum flexibility.

Simply easy

• Smooth steering and intuitive operation of all functions for left- and right-handed operators with STILL Easy Drive steering wheel
• Easy access and optimal protection for the operator’s back and joints: low access point and adjustable, air-cushioned stand-on platform with integrated compressor available as an option
• Optional built-in charger for decentralised charging at every power socket
• Optimal utilisation of storage space: compact dimensions and high manoeuvrability facilitate narrow working aisles

Simply powerful

• Fast goods handling: up to 2,500 kg lifting capacity and an optional maximum speed of 14 km/h for the EXH-S 25
• Built for continuous operation: reliable and low-maintenance drive
• Swift, safe movement on ramps: high-powered drive and lift motor and 5-wheel chassis with sprung support wheels
• Instant charging: lithium-ion model achieves 50 percent charge level in only 30 minutes and is fully charged in only 90 minutes
• Withstands even the toughest applications: robust, durable chassis made from solid steel

Simply safe

• Simply work with precision thanks to unobstructed field of vision: free view mast and centrally positioned tiller
• Accidental roll-back impossible: automatic stop function even on ramps
• Fast and safe cornering: Curve Speed Control automatically adapts speed to the steering angle when cornering
• Only moves off once the operator is standing safely: optional foot sensor determines whether the feet are within the truck’s contour
• Safe load handling in confined spaces thanks to compact dimensions

Simply flexible

• Suitable driving programmes for any application, from maximum handling power to optimal efficiency: ECO, BOOST or Blue-Q
• Ready for use at all times: battery capacities up to 500 Ah and optional STILL lithium-ion battery for round-the-clock availability
• Decentralised and flexible charging at any power socket with the optional built-in charger
• Flexibly configurable driver’s cab for various main applications, from frequent ramp driving through to long transport distances: rear access, side access or backrest

Simply connected

• Versatile, flexible access control with FleetManager 4.x
• Fast service analysis and parametrisation of settings thanks to CAN bus interface
• Easy integration into material flow management system thanks to MMS provision
